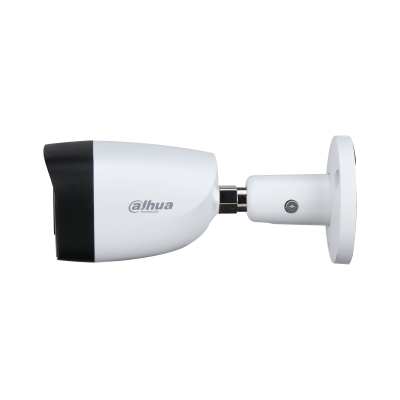

HAC-HFW2501CM-A-POC
5MP Starlight HDCVI IR Bullet Camera
* The parameters and datasheets below can only be applied to 2501-POC-S2 series.
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> Max 25 fps@5MP (16:9 video output)> Starlight, 120 dB true WDR, 3D NR
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Built-in mic
> Max. IR length 30 m, Smart IR
> IP67, PoC (only CVI)/12V±30% DC
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
2880 (H) × 1620 (V)
Pixel
5 MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 sS/N Ratio
> 65 dB
Min. Illumination
0.001 Lux/F1.6, 30IRE, 0Lux IR on
Illumination Distance
30 m (98.4 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
3 (IR light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.6
Field of View
2.8 mm: H: 111°; V: 58°; D: 132°
3.6 mm: H: 92° ; V: 48°; D: 109°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
63.6 m
(208.7 ft)
25.4 m
(83.3 ft)
12.7 m
(41.7 ft)
6.4 m
(21.0 ft)
3.6 mm
80 m
(262.5 ft)
32 m
(105.0 ft)
16 m
(52.5 ft)
8 m
(26.2 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps
NTSC: 5M@25 fps; 4M@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H
CVBS:
PAL: 960H
NTSC: 960H
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/Night
Auto (ICR)
BLC
BLC/HLC/WDR/HLC-Pro
WDR
120 dB
White Balance
Auto/Manual
Gain Control
Auto/Manual
Noise Reduction
3D NR
Smart IR
Yes
Mirror
Yes
Privacy Masking
Off/On (8 areas, rectangle)
Certifications
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Interface
One channel built-in mic
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply
POC (only CVI)/12V±30% DC
Power Consumption
Max 4.W (12 VDC, IR on); PoC (AF)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Protection Grade
IP67
Structure
Casing
Metal throughout the whole casing
Camera Dimensions
166.6 mm × 69.7 mm × 70.0 mm
(6.56" × 2.75" × 2.75")
Net Weight
0.34 kg (0.76 lb)
Gross Weight
0.45 kg (0.99 lb)
