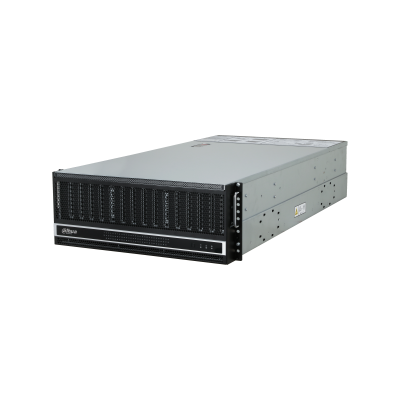

EVS7285S

85-bay Embedded Video Storage

> 64-bit high-performance multi-core processor.
> Max 1024-ch IP camera inputs.
> Max 2048 Mbps incoming/recording/forwarding bandwidth.
> 85 bays, SAS/SATA, Hot-Swap.
> Supports RAID 0/1/5/6/10/50/60, JRAID, JBOD, Hot spare.
> Supports video stream direct storage mode and IPSAN storage mode.
> Supports N+M cluster.
> Supports Automatic Network Replenishment (ANR).
> Modular and drawer-like design.
> 2+1 redundant 80PLUS platinum power supply.
  • Spezifikationen
  • Zubehöre
  • Herunterladen
  • System

    Main Processor

    64-bit high-performance multi-core processor

    Operating System

    Embedded Linux OS

    Operating Interface

    Web (PCAPP)

    Controller

    Single controller₩Single controller

    Cache

    16 GB by default (extendable to 128 GB)

    AI Applications

    AI by Camera

    Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection)

    Camera Compatibility

    Thermal

    Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling

    People Counting

    Works with camera for tripwire people counting, regional people counting and queue people counting

    Bullet-PTZ Smart Track

    Works with camera for manual tracking, auto tracking, click positioning and select positioning

    Fisheye Dewarp

    Supports dewarping for fisheye cameras

    Cluster

    Cluster

    N+M

    Audio and Video

    Third-party Camera Access

    Onvif,Onvifs,RTSP,Sony,Panasonic,Axis,Arecont,Pelco,Canon,Samsung,Hikvision

    Compression Standard

    Video Compression

    Smart H.265+;H.265;Smart H.264+;H.264;MJPEG

    Audio Compression

    G.711a;G.711u;G.729;AAC;G.726;MP2L2;G.7221

    Network

    Network Protocol

    HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;iSCSI;FTP;SMB;NFS;GAT1400

    Interoperability

    ONVIF (Profile S); CGI; SDK

    Browser

    Chrome; PCAPP; IE9 or higher; Firefox

    Network Mode

    Multiple-address mode;Load balance;Fault-tolerance;Link aggregation

    Recording Playback

    Multi-channel Playback

    Max. 16-channel playback

    Record Mode

    Auto record; manual record; search video detection; IO alarm; thermal imaging; intelligent event; all record file

    Storage Method

    Internal HDD and network disk

    Backup Method

    HDD, peripheral USB storage device

    Playback Function

    1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off

    Storage

    Video Direct Storage (Private Protocol)

    Incoming: 1024-channel (bandwidth: 2048 Mbps) Recording: 1024-channel (bandwidth: 2048 Mbps) Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps)

    Video Direct Storage (Onvif)

    Incoming: 1024-channel (bandwidth: 2048 Mbps)

    Recording: 1024-channel (bandwidth: 2048 Mbps)

    Outgoing: 1024-channel (bandwidth: 2048 Mbps)

    Playback: 32-channel (bandwidth: 64 Mbps)

    Video Direct Storage (Auto Register)

    Incoming: 1024-channel (bandwidth: 2048 Mbps) Recording: 1024-channel (bandwidth: 2048 Mbps) Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps)

    Video Direct Storage (International Protocol)

    Incoming: 1024-channel (bandwidth: 2048 Mbps) Recording: 1024-channel (bandwidth: 2048 Mbps) Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps)

    Picture Direct Storage

    Incoming: 512-channel (550 KB/picture) Recording: 512-channel (550 KB/picture) Outgoing: 512-channel (550 KB/picture)

    Disk Group

    Yes

    iSCSI

    Supports client and Server

    Network Disk

    Supports client

    RAID

    RAID0;RAID1;RAID5;RAID6;RAID10;RAID50;RAID60;JRAID

    Record Management

    Supports record control (continuous, event-based, scheduled, scheduled & event-based).

    Storage Pool

    Yes

    IPSAN

    IPSAN Performance

    Write-through: 900 Mbps Write-back: 1200 Mbps

    Alarm

    General Alarm

    Motion detect; tampering; IPC external alarm

    Anomaly Alarm

    IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service

    Alarm Linkage

    Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels

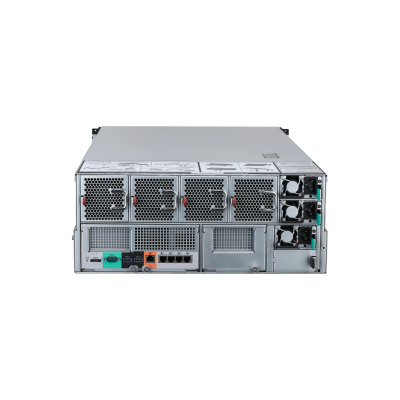

    Port

    Disk Interface

    85 slots,

    SATA; SAS,

    Max.20 TB/HDD ,

    hot swapping, CMR,

    support enterprise-grade HDD

    eSATA

    1 port

    RS-232

    1 port, for debug or COM data transmission

    USB

    2 ports. 2 USB3.0 ports at the rear panel

    Network Port

    4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrica port)

    1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port)

    Power

    2+1 redundant power supply

    Network Port Extension

    2 × 10-GbE optical fiber ports (optional)

    General

    Disk Bay

    85

    Form Factor

    4U

    Power Supply

    100–127/200–240 VAC, 50/60 Hz, 16/8A

    Power Consumption

    <1600 W (include disks)

    Fan

    Intelligent speed regulation fan

    Net Weight

    55.2kg (121.7 lb)

    Gross Weight

    75kg (165.3 lb)

    Product Dimensions

    Chassis:446mm x 177mm x 932.9mm (17.56" × 6.96" × 36.73") (W × H × D)

    Packaging Dimensions

    With packaging:482.6mm x 177mm x 932.9mm (19" × 6.96" × 36.73") (W × H × D)

    Operating Temperature

    0°C to +35°C (+32℉ to +95℉)

    Operating Humidity

    10%–80% (RH), non-condensing

    Operating Altitude

    ≤3000m

    Installation

    Standard 19 inch rack, with slide rail

    Certifications

    CE: CE-LVD: EN 62368-1/IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130-4, EN 55035 FCC: Part 15 Subpart B
