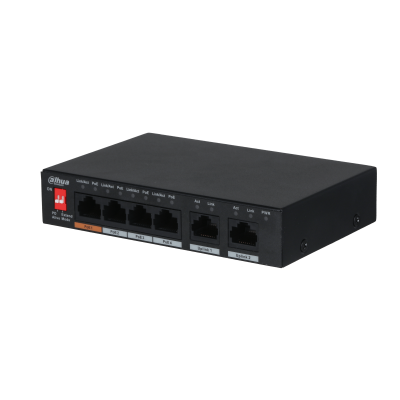

PFS3006-4ET-60

6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)

> Layer two commercial switch

> Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards

> MDI/MDIX self-adaptation

> RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards

> Port 1 supports Hi-PoE 60W power supply

> 250 m PoE power supply

> Wall mounting and mechanical anti-theft

> 53V DC power supply

> Supports PoE watchdog



  • Especificaciones
  • Accesorios
  • Descargar
  • Hardware

    Ethernet Port

    4

    Optical Port

    0

    Ethernet Port Rate

    100 Mbps

    Number of Business Card Slots

    Port 1–4: 4 × RJ-45 10/100 M (PoE)
    Port 5–6: 2 × RJ-45 10/100 M (uplink)

    Power Supply

    53V DC

    Operating Temperature

    –10°C to +55°C (+14°F to +131°F)

    Operating Humidity

    5%–95%

    Storage Temperature

    –20°C to +70°C (–4°F to +158°F)

    Storage Humidity

    5%–95%

    Power Consumption

    Idling: 1.5W
    Full load: 60W

    Performance

    Switching Capacity

    1.80 Gbps

    Packet Forwarding Rate

    0.89 Mpps

    Packet Buffer Size

    1 Mbit

    MAC Table Size

    2K

    Communication Standard

    IEEE802.3, IEEE802.3u, IEEE802.3x

    PoE

    PoE Standard

    IEEE802.3af/IEEE802.3at/Hi-PoE

    PoE Power

    60W

    PoE Power Consumption Management

    Yes

    PoE Pin Assignment

    PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

    Far Distance Mode

    250 m @10 Mbps

    General

    ESD

    Air discharge: 8kV
    Contact discharge: 6kV

    Thunderproof

    Common mode: 2kV
    Differential mode: 1kV

    Net Weight

    0.3 kg (0.66 lb)

    Gross Weight

    0.9 kg (1.98 lb)

    Product Dimensions

    130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")

    Packaging Dimensions

    267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03")

    Transmission Performance:

    Switch power supply voltage 53V.

    CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

    Cable(m)

    Load Capacity(W)

    Bandwidth(Mbps)

    IEEE802.3bt 90 W

    100

    71.3

    100

    150

    62

    10

    200

    51

    10

    250

    40

    10

    Hi-PoE 60 W

    100

    53

    100

    150

    50

    10

    200

    47

    10

    250

    37

    10

    IEEE802.3at 30 W

    100

    25.5

    100

    150

    25.5

    10

    200

    25.5

    10

    250

    25.5

    10

    Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
