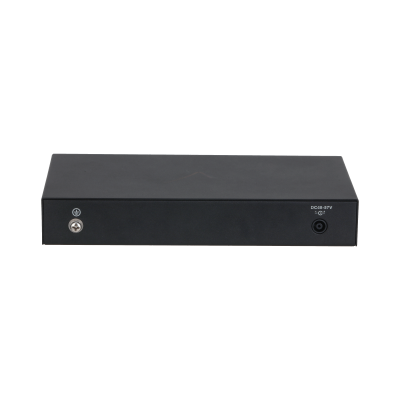

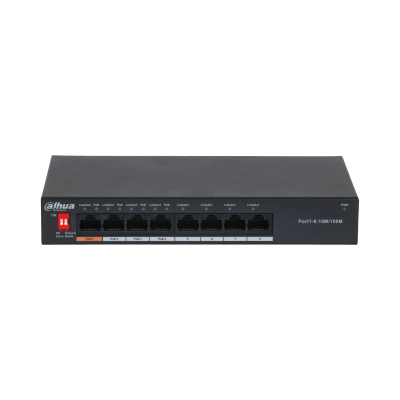

PFS3008-8ET-60

8-Port Unmanaged Desktop Switch with 4-Port PoE

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)

> Intelligent PoE

> Hi-PoE 60W (orange port)

> 8-pin assignment PoE power supply

> Long distance PoE

> PoE watchdog

> Wide working temperature


  • Especificaciones
  • Accesorios
  • Descargar
  • Hardware

    Data Transmission Port

    Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
    Port 5-8: 4 × RJ-45 10/100 Mbps

    Power Supply

    48 V–57 V DC

    Operaing Temperature

    –10 °C to +55 °C (+14 °F to + 131 °F)

    Operating Humidity

    5%–95% (RH)

    Storage Temperature

    –20 °C to + 70 °C (–4° F to + 158 °F)

    Storage Humidity

    5%–95% (RH)

    Power Consumption

    Idling: 0.8 W
    Full load: 60 W

    Performance

    Capacity

    1.8 Gbps

    Packet Forwarding Rate

    1.19 Mpps

    Packet Buffer Memory

    768 Kbit

    MAC Table Size

    2K

    Communication Standard

    IEEE802.3; IEEE802.3u; IEEE802.3x

    PoE

    PoE Standard

    IEEE802.3af; IEEE802.3at; Hi-PoE

    PoE Power

    60 W

    Power Consumption Management

    Yes

    PoE Pin Assignment

    1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

    Long Distance PoE

    Supports 250 m (820.21 ft)

    General

    Statics Protection

    Air discharge: 8 kV
    Contact discharge: 6 kV

    Thunder-proof

    Common mode: 4 kV
    Differential mode: 2 kV

    Net Weight

    490 g (1.08 lb)

    Product Dimensions

    190 mm × 100 mm × 30 mm (7.48" × 3.93" × 1.18") (W × L × H)

    Transmission Performance:

    Switch power supply voltage 53V.

    CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

    Cable(m)

    Load Capacity(W)

    Bandwidth(Mbps)

    IEEE802.3bt 90 W

    100

    71.3

    100

    150

    62

    10

    200

    51

    10

    250

    40

    10

    Hi-PoE 60 W

    100

    53

    100

    150

    50

    10

    200

    47

    10

    250

    37

    10

    IEEE802.3at 30 W

    100

    25.5

    100

    150

    25.5

    10

    200

    25.5

    10

    250

    25.5

    10

    Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
