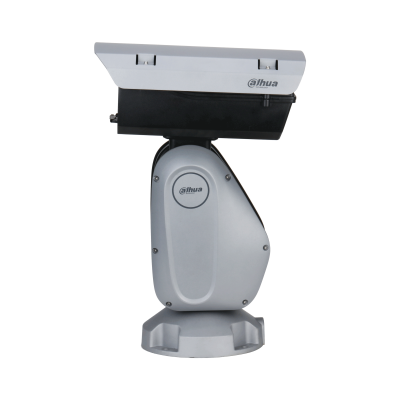

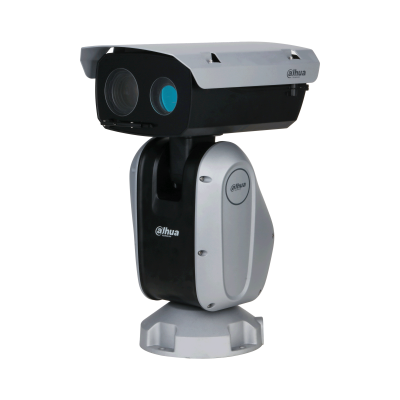

PTZ85848-HNF-PA-FL

8MP 48x Starlight Laser AI Network Positioning System

> 1/1.8" 8Megapixel STARVIS™ CMOS

> 48× optical zoom

> Starlight technology

> Max. 25/30 fps@8M

> Laser distance up to 1000 m

> H.265 encoding

> Two-way audio

> IP67

> Auto-tracking

> Perimeter protection

> face recognition

> Optical fiber


  • Caractéristiques
  • Accessoires
  • Téléchargement
  • Camera

    Image Sensor

    1/1.8" CMOS

    Pixel

    8 MP

    Max. Resolution

    3840 (H) × 2160 (V)

    ROM

    8 GB

    RAM

    2 GB

    Electronic Shutter Speed

    1/1 s–1/30,000 s

    Scanning System

    Progressive

    Min. Illumination

    Color: 0.005 lux@F1.4
    B/W: 0.0005 lux@F1.4
    0 lux (laser on)

    Illumination Distance

    1,000 m (3,280.84 ft)

    Illuminator On/Off Control

    Zoom Prio; Manual; Off

    Illuminator Number

    1 (laser)

    Wiper

    Yes

    Lens

    Focal Length

    6.25 mm–300 mm

    Max. Aperture

    F1.4–F4.5

    Field of View

    H: 64.9°–1.8°; V: 38°–1.3°; D: 71.3°–1.9°

    Optical Zoom

    48×

    Focus Control

    Auto; semi-auto; manual

    Close Focus Distance

    0.5 m–2 m (1.64 ft–6.56 ft)

    Iris Control

    Auto; manual

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    6,000 m (19,685.04 ft)

    2,381 m (7,811.68 ft)

    1,200 m (3,937.01 ft)

    600 m (1,968.50 ft)

    PTZ

    Pan/Tilt Range

    Pan: 0° to 360° endless
    Tilt: –45° to +90°

    Manual Control Speed

    Pan: 0.1°/s–160°/s
    Tilt: 0.1°/s–60°/s

    Preset Speed

    Pan: 160°/s; Tilt: 60°/s

    Preset

    300

    Tour

    8 (up to 32 presets per tour)

    Pattern

    5

    Scan

    5

    Power-off Memory

    Yes

    Idle Motion

    Preset; Pattern; Tour; Scan

    PTZ Protocol

    DH-SD

    Pelco-P/D (auto recogniton)

    Intelligence

    Video Metadata

    Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

    IVS (Perimeter Protection)

    Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification.

    Face Recognition

    Yes

    Video

    Video Compression

    H.265; H.264M; H.264H; MJPEG; Smart H.265; Smart H.264

    Streaming Capability

    3 streams

    Resolution

    8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Video Frame Rate

    Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
    Sub stream 1: D1/VGA/CIF (1–25/30 fps)
    Sub stream 2: 1080p/960p/720p (1–25/30 fps)

    Bit Rate Control

    CBR; VBR

    Video Bit Rate

    H.264: 3328–16384 kbps
    H.265: 1280–9984 kbps

    Day/Night

    Auto (ICR); Color; B/W

    BLC

    Yes

    WDR

    Yes

    HLC

    Yes

    White Balance

    Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

    Gain Control

    Auto; manual

    Noise Reduction

    2D NR; 3D NR

    Motion Detection

    Yes

    Region of Interest (RoI)

    Yes

    Defog

    Optical

    Digital Zoom

    16×

    Image Rotation

    180°

    Privacy Masking

    Up to 24 areas can be set, with up to 8 areas in the same view

    S/N Ratio

    ≥55 dB

    Audio

    Audio Compression

    G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; PCM

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    Network Protocol

    HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP

    Interoperability

    ONVIF (Profle S&G&T); GB/T28181; CGI

    Streaming Method

    Unicast; Multicast

    User/Host

    20 (total bandwidth: 64 M)

    Storage

    FTP; Micro SD card (512 GB); NAS

    Browser

    IE 7 and later versions
    Chrome 45 and later versions
    Firefox 52ESR and earlier versions
    Safari

    Management Software

    Smart PSS; DSS; IVSS

    Mobile Client

    iOS; Android

    Port

    Analog Output

    1 channel (CVBS output, BNC)

    RS-485

    1 (baud rate: 1200 bps–115200 bps)

    Audio Input

    1 channel (LINE IN, bare wire)

    Audio Output

    1 channel (LINE OUT, bare wire)

    Two-way Audio

    Yes

    Alarm Input

    7 (on-off value input: 0–5 VDC)

    Alarm Output

    2

    Alarm Linkage

    Capture; preset; tour; pattern; recordings on SD card; alarm digital input; client E-map; send email

    Alarm Event

    Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection

    Optical Fiber

    100 M single fiber FC

    Specifications: 1310 nm TX/1550 nm RX

    Transmission distance: 20 km (12.43 mi)

    Power

    Power Supply

    36 VDC, 5 A (± 25%)

    Power Consumption

    Basic: 22 W
    Max.: 63 W (illuminator + wiper + PTZ)

    Environment

    Operating Temperature

    –40 °C to +70 °C (–40 °F to 158 °F)

    Operating Humidity

    ≤95%

    Protection

    IP67; TVS 6000 V lightning proof; surge protection; voltage transient protection

    Structure

    Casing

    ADC12

    Product Dimensions

    344.6 mm × 252.2 mm × 499.8 mm (13.57" × 9.93" × 19.68") (L × W × H)

    Net Weight

    15.4 kg (33.95 lb)

    Gross Weight

    23.7 kg (52.25 lb)
