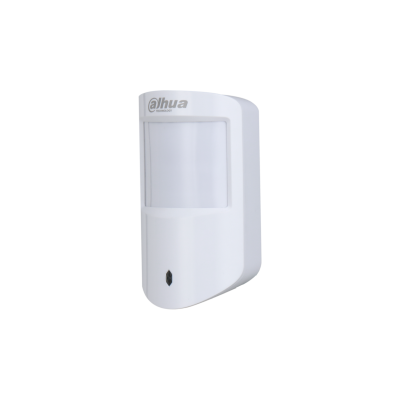

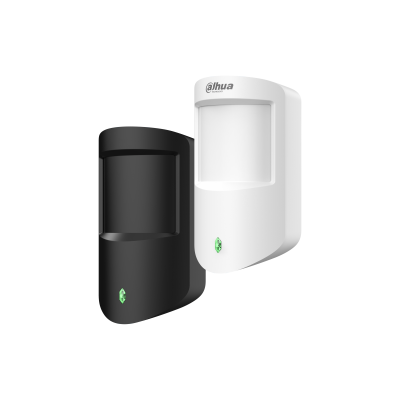

ARD1233-W2(868)

Wireless PIR detector

> Pet immunity function.

> Auto temperature compensation.

> 3-level sensitivity adjustment.

> Signal strength detection.

> Low battery alarm.

> Temperature monitoring.

> Frequency hopping function and two-way communication technology ensure communication stability.

> Cloud update and automatic recovery from update failure.

  • Specifications
  • Accessories
  • Download
  • Port

    Indicator Light

    1 × green alarm indicator

    Button

    1 × power button

    Function

    Tamper Alarm

    Yes

    Remote Upgrade

    Cloud update

    Search

    Signal strength detection

    Test Mode

    Yes

    Low Battery Alarm

    Yes

    Wireless

    Carrier Frequency

    868.0 MHz–868.6 MHz

    Transmitter Power(EIRP)

    Limit 25mW

    Communication Distance

    Up to 1,600 m (5,249.34 ft) in an open space

    Communication Mechanism

    Two-way

    Encryption Mode

    AES128

    Frequency Hopping

    Yes

    General

    Power Supply

    CR123A battery

    Power Consumption

    Max. 120 mW

    Operating Temperature

    –10 °C to +55 °C (+14 °F to +131 °F) (indoor)

    Operating Humidity

    10%–90% (RH).

    Dimensions

    104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)

    Package Dimensions

    135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H)

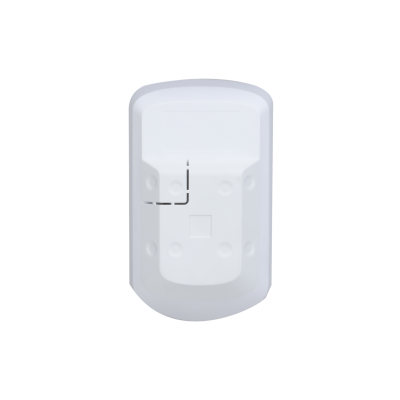

    Installation Mode

    Wall mount

    Net Weight

    100 g (0.22 lb)

    Gross Weight

    170 g (0.37 lb)

    Certifications

    CE

    EN 50131-1:2006+A1:2009+A2:2017+A3:2020

    EN 50131-2-2:2017

    EN 50131-6:2017

    EN 50131-5-3:2017

    Security Grade 2

    Environmental Class II

    Battery Life

    4 years

    Casing

    PC + ABS

    Temperature

    Measuring Range

    –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)

    Measuring Precision

    ± 1 °C (± 33.8 °F)

    Resolution

    1 °C (33.8 °F)

    Specification

    Detection Mode

    PIR

    Sensor

    Dual-element low-noise PIR sensor

    Detection Range

    12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)

    Detection Speed

    0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

    Pet Immunity Level

    ≤ 18 kg (39.68 lb)

    White Light Resistance Level

    2000 lx

    Two-way Digital Temperature Compensation

    Yes, no attenuation of detection distance in high temperature

    Sensitivity

    3 levels adjustable
